MSE vs MARPE: clarifying the terms and how the orthodontist chooses a design

Key facts

• MARPE is the category; MSE is one specific design
• Both anchor expansion to bone with miniscrews
• MSE uses four mini-implants in a fixed configuration
• Custom CBCT-designed MARPE adapts screw positions to anatomy
• The design is chosen from bone, suture and expansion needs

MARPE: the category

MARPE describes any rapid palatal expander that uses temporary miniscrews in the palate so that the expansion force goes into the bone rather than relying on the teeth. Designs vary: some use two miniscrews, others four; some are attached only to the screws (bone-borne), while others are attached to both screws and back teeth (hybrid). The goal is the same in each case — to separate the midpalatal suture and widen the upper jaw in late adolescents and adults, beyond the age when tooth-borne expanders work well. Because MARPE is a category rather than a single device, two clinicians can both say they provide MARPE while using very different appliances.

MSE: one specific design

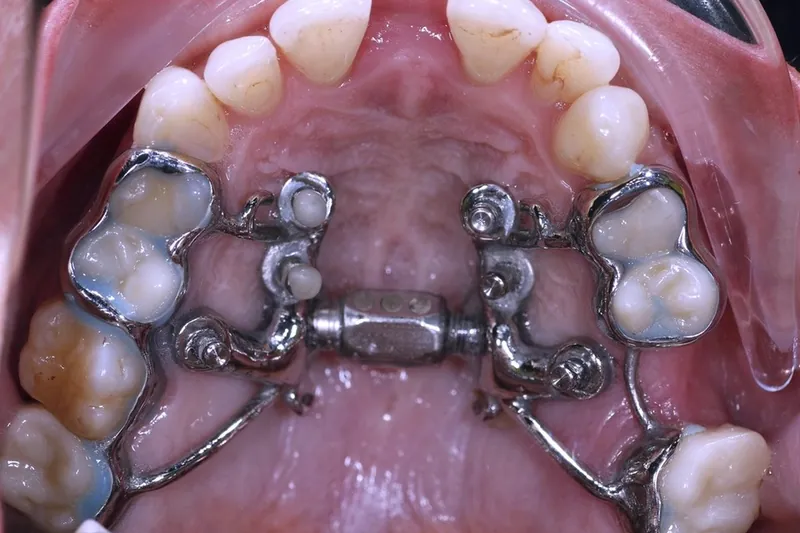

The Maxillary Skeletal Expander is a particular MARPE design with four mini-implants placed through the appliance into the palatal bone, positioned towards the back of the palate where the bone and suture resistance are greatest. Its screw configuration is fixed by the design, and the appliance is attached to the back teeth as well. MSE has been widely used and studied, and it is often considered for older teenagers and adults with a matured suture, including some who were previously told they needed surgery. Because the implant positions follow the device, suitability depends on whether the patient's palatal bone is thick enough in those positions, which is checked on CBCT.

Custom-designed vs prefabricated appliances

Some MARPE appliances are built around a prefabricated expansion screw with standard miniscrew positions, adapted to the patient's model. Others are fully custom-designed from the patient's CBCT and digital scan, with miniscrew positions, angles and lengths planned to engage the thickest, strongest bone available and to avoid roots and the nasal floor. Custom planning can be particularly helpful when anatomy is unusual or bone is thin in standard positions. Dr. Pacha uses CBCT-planned designs so that screw placement is based on measured anatomy rather than assumptions. Neither approach is universally superior; the right choice depends on the individual palate.

How Dr. Pacha chooses

The decision starts with a clinical examination, a digital intraoral scan and a CBCT scan. Dr. Pacha looks at the thickness and density of the palatal bone, the shape and maturity of the midpalatal suture, the width discrepancy between the jaws, the position of the roots, and whether the patient also has a midfacial deficiency that might call for a midface expander instead. He then selects the design most likely to achieve skeletal expansion safely — sometimes MSE, sometimes another custom MARPE configuration. The reasoning is explained in a written report and plan, along with alternatives such as surgically assisted expansion when bone-anchored expansion is unlikely to succeed.

What stays the same whichever design is used

Whether the appliance is an MSE or another MARPE design, the experience is similar. Miniscrews are placed under local anaesthetic, the appliance is activated gradually on a set schedule, and pressure in the palate, nose or cheeks is common during turning. A gap between the upper front teeth usually appears when the suture opens and is closed later with braces or aligners. The appliance stays in place for several months to consolidate the new bone. Risks include discomfort, gum irritation and, uncommonly, screw loosening or asymmetric expansion. Benefits may include crossbite correction, more room for teeth and, in some patients, improved nasal airflow, but neither design treats sleep apnoea on its own.

In adults the midline suture of the palate has usually fused, so traditional expanders mostly tip teeth instead of widening the jaw. MARPE anchors the expander to the palatal bone with small miniscrews, allowing skeletal expansion in many adults without surgical expansion. Published clinical studies, including randomised trials, report improvements in nasal airway dimensions and, in selected patients, in sleep-disordered breathing measures.
